Bug 29821 - Add interface for generating barcodes using svc/barcode
Summary: Add interface for generating barcodes using svc/barcode
Status: CLOSED FIXED
Alias: None
Product: Koha
Classification: Unclassified
Component: Tools (show other bugs)
Version: master
Hardware: All All
: P5 - low enhancement (vote)
Assignee: Owen Leonard
QA Contact: Testopia
URL:
Keywords:
Depends on: 20894
Blocks:
  Show dependency treegraph

Reported: 2022-01-07 16:37 UTC by Owen Leonard
Modified: 2023-10-20 08:35 UTC (History)
7 users (show)

See Also:
Change sponsored?: ---
Patch complexity: Medium patch
Documentation contact: Caroline Cyr La Rose
Documentation submission: https://gitlab.com/koha-community/koha-manual/-/merge_requests/600
Text to go in the release notes:
Version(s) released in:
22.05.00


Attachments
Screenshot showing the proposed interface (164.01 KB, image/png)
2022-01-07 16:37 UTC, Owen Leonard
Details
Bug 29821: Add interface for generating barcodes using svc/barcode (17.54 KB, patch)
2022-01-07 17:38 UTC, Owen Leonard
Details | Diff | Splinter Review
Bug 29821: Add interface for generating barcodes using svc/barcode (17.59 KB, patch)
2022-03-24 16:57 UTC, Lucas Gass
Details | Diff | Splinter Review
Bug 29821: Add interface for generating barcodes using svc/barcode (17.65 KB, patch)
2022-03-30 13:45 UTC, Nick Clemens
Details | Diff | Splinter Review

Note You need to log in before you can comment on or make changes to this bug.
Description Owen Leonard 2022-01-07 16:37:04 UTC
Created attachment 129199 [details]

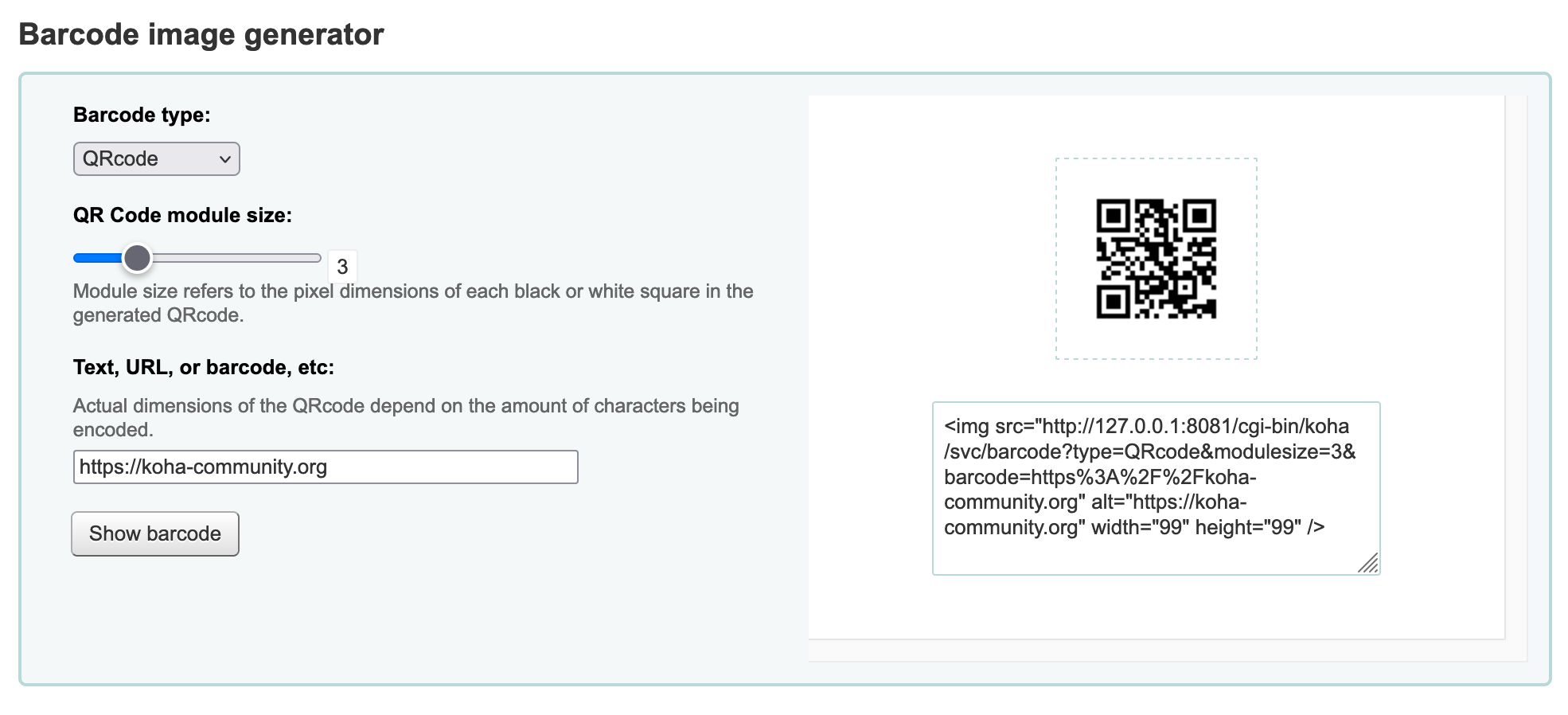

Screenshot showing the proposed interface

svc/barcode is a hidden feature without an web interface for testing its features. To give users the information they need to be able to integrate barcodes into, for instance, notices, we should offer an interface for testing the output of barcode generation.
Comment 1 Owen Leonard 2022-01-07 17:38:05 UTC
Created attachment 129201 [details] [review]
Bug 29821: Add interface for generating barcodes using svc/barcode

This patch adds a new page providing an interface for generating
barcodes using svc/barcode. A form allows the user to choose various
parameters and see the resulting barcode image.

To test, apply the patch and rebuild the staff interface SCSS
(https://wiki.koha-community.org/wiki/Working_with_SCSS_in_the_OPAC_and_staff_client).

- Go to the "Tools" home page. Follow the link to "Barcode image
  generator."
- On the barcode image generator page, confirm that there is a "Barcode
  image generator" link in the sidebar and that it is displayed with
  bold text.
- Test the features of the form:
  - Enter a numeric value in the "Barcode" field and tab out of the
    field or click "Show barcode" button. A barcode of type "Code39"
    should be shown with the text of the barcode included in the
    image below the barcode.
  - A text area below the barcode image should show the HTML used to
    generate the preview image.
    - Clicking in this textarea should automatically add the contents to
    the clipboard. You should be shown a message, "HTML copied to the
    clipboard."
  - Check the "hide text" checkbox. The barcode should be redisplayed
    without the text.
  - Check that changing the "barcode height" value is reflected
    correctly in the barcode image.
  - Try adding non-numeric data in the "Barcode" field. You should be
    shown an error message, "Barcodes of type [type]  must be numeric."
  - Test these other numeric barcode types: Code39, COOP2of5, EAN13,
    EAN8, IATA2of5, Industrial2of5, ITF, Matrix2of5, NW7, UPCA, and
    UPCE.

    Note that EAN13, EAN8, UPCA, and UPCE expect specific patterns. Test
    values (found here: https://barcode.tec-it.com/en/UPCE):

    EAN13: 978020137962
    EAN8: 9031101
    UPCA: 72527273070
    UPCE: 0123456

  - Change the barcode type to "QRcode."
    - The form should change, hiding the "Hide text" checkbox and
      showing a new ranger slider for "QR Code module size."
    - The barcode field should now be labeled "Text, URL, or barcode,
      etc"
    - The barcode field hint should change to a hint about QRcode
      dimensions.
    - Changing the "module size" slider should change the size of the
      generated QR code. As you change the slider the selected value
      should be reflected in the box.
Comment 2 Lucas Gass 2022-03-24 16:57:22 UTC
Created attachment 132189 [details] [review]
Bug 29821: Add interface for generating barcodes using svc/barcode

This patch adds a new page providing an interface for generating
barcodes using svc/barcode. A form allows the user to choose various
parameters and see the resulting barcode image.

To test, apply the patch and rebuild the staff interface SCSS
(https://wiki.koha-community.org/wiki/Working_with_SCSS_in_the_OPAC_and_staff_client).

- Go to the "Tools" home page. Follow the link to "Barcode image
  generator."
- On the barcode image generator page, confirm that there is a "Barcode
  image generator" link in the sidebar and that it is displayed with
  bold text.
- Test the features of the form:
  - Enter a numeric value in the "Barcode" field and tab out of the
    field or click "Show barcode" button. A barcode of type "Code39"
    should be shown with the text of the barcode included in the
    image below the barcode.
  - A text area below the barcode image should show the HTML used to
    generate the preview image.
    - Clicking in this textarea should automatically add the contents to
    the clipboard. You should be shown a message, "HTML copied to the
    clipboard."
  - Check the "hide text" checkbox. The barcode should be redisplayed
    without the text.
  - Check that changing the "barcode height" value is reflected
    correctly in the barcode image.
  - Try adding non-numeric data in the "Barcode" field. You should be
    shown an error message, "Barcodes of type [type]  must be numeric."
  - Test these other numeric barcode types: Code39, COOP2of5, EAN13,
    EAN8, IATA2of5, Industrial2of5, ITF, Matrix2of5, NW7, UPCA, and
    UPCE.

    Note that EAN13, EAN8, UPCA, and UPCE expect specific patterns. Test
    values (found here: https://barcode.tec-it.com/en/UPCE):

    EAN13: 978020137962
    EAN8: 9031101
    UPCA: 72527273070
    UPCE: 0123456

  - Change the barcode type to "QRcode."
    - The form should change, hiding the "Hide text" checkbox and
      showing a new ranger slider for "QR Code module size."
    - The barcode field should now be labeled "Text, URL, or barcode,
      etc"
    - The barcode field hint should change to a hint about QRcode
      dimensions.
    - Changing the "module size" slider should change the size of the
      generated QR code. As you change the slider the selected value
      should be reflected in the box.

Signed-off-by: Lucas Gass <lucas@bywatersolutions.com>
Comment 3 Nick Clemens 2022-03-30 13:45:46 UTC
Created attachment 132614 [details] [review]
Bug 29821: Add interface for generating barcodes using svc/barcode

This patch adds a new page providing an interface for generating
barcodes using svc/barcode. A form allows the user to choose various
parameters and see the resulting barcode image.

To test, apply the patch and rebuild the staff interface SCSS
(https://wiki.koha-community.org/wiki/Working_with_SCSS_in_the_OPAC_and_staff_client).

- Go to the "Tools" home page. Follow the link to "Barcode image
  generator."
- On the barcode image generator page, confirm that there is a "Barcode
  image generator" link in the sidebar and that it is displayed with
  bold text.
- Test the features of the form:
  - Enter a numeric value in the "Barcode" field and tab out of the
    field or click "Show barcode" button. A barcode of type "Code39"
    should be shown with the text of the barcode included in the
    image below the barcode.
  - A text area below the barcode image should show the HTML used to
    generate the preview image.
    - Clicking in this textarea should automatically add the contents to
    the clipboard. You should be shown a message, "HTML copied to the
    clipboard."
  - Check the "hide text" checkbox. The barcode should be redisplayed
    without the text.
  - Check that changing the "barcode height" value is reflected
    correctly in the barcode image.
  - Try adding non-numeric data in the "Barcode" field. You should be
    shown an error message, "Barcodes of type [type]  must be numeric."
  - Test these other numeric barcode types: Code39, COOP2of5, EAN13,
    EAN8, IATA2of5, Industrial2of5, ITF, Matrix2of5, NW7, UPCA, and
    UPCE.

    Note that EAN13, EAN8, UPCA, and UPCE expect specific patterns. Test
    values (found here: https://barcode.tec-it.com/en/UPCE):

    EAN13: 978020137962
    EAN8: 9031101
    UPCA: 72527273070
    UPCE: 0123456

  - Change the barcode type to "QRcode."
    - The form should change, hiding the "Hide text" checkbox and
      showing a new ranger slider for "QR Code module size."
    - The barcode field should now be labeled "Text, URL, or barcode,
      etc"
    - The barcode field hint should change to a hint about QRcode
      dimensions.
    - Changing the "module size" slider should change the size of the
      generated QR code. As you change the slider the selected value
      should be reflected in the box.

Signed-off-by: Lucas Gass <lucas@bywatersolutions.com>

Signed-off-by: Nick Clemens <nick@bywatersolutions.com>
Comment 4 Fridolin Somers 2022-04-08 13:15:08 UTC
In the future we will use REST API I bet
Comment 5 Fridolin Somers 2022-04-08 13:53:08 UTC
Pushed to master for 22.05, thanks to everybody involved 🦄
